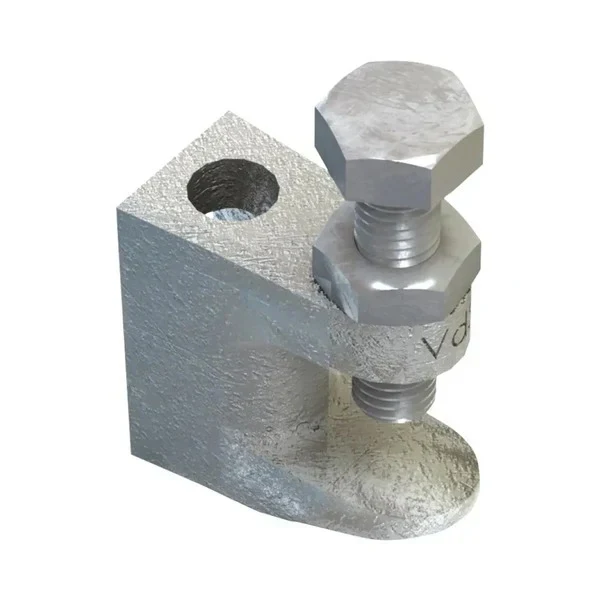

Lindapter Beam Clamp Type FL

Lindapter Beam Clamp Type FL for Steelwork Flange

Lindapter beam clamps provide a faster installation method for steel sections compared to traditional drilling or welding — making them a cost-effective alternative. They offer versatile connection solutions for direct attachments to steel beams.

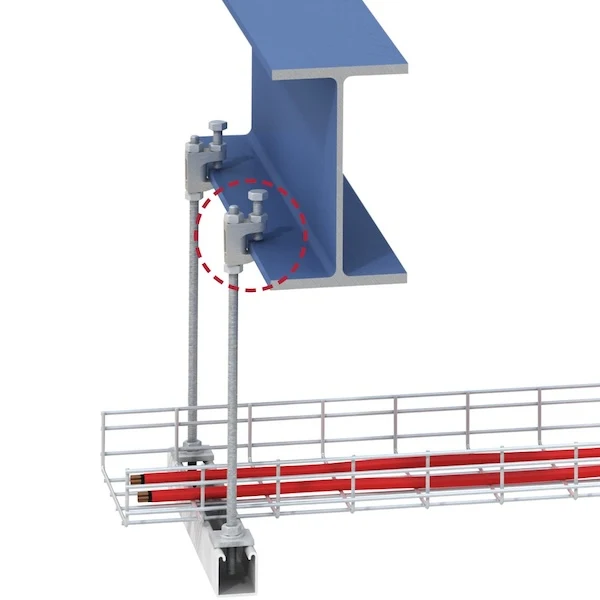

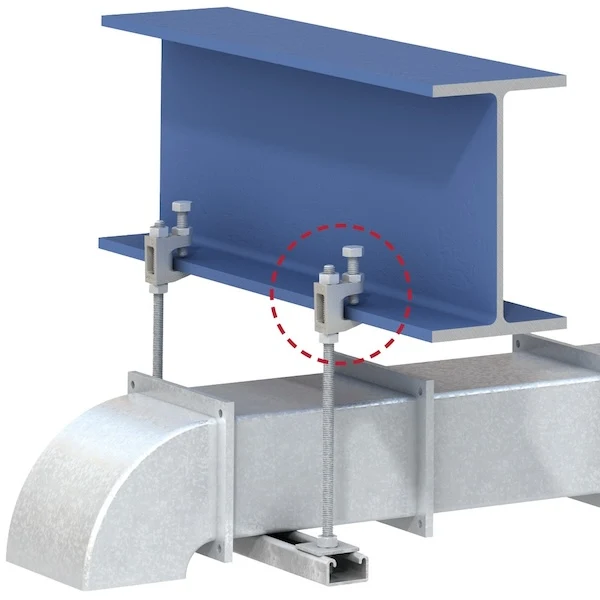

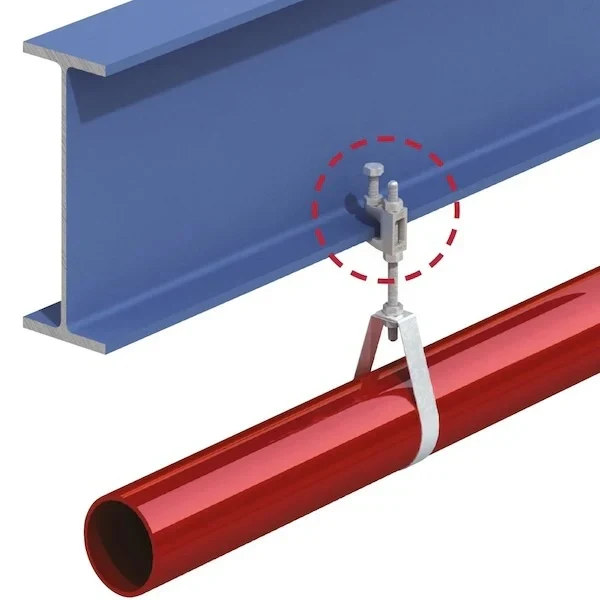

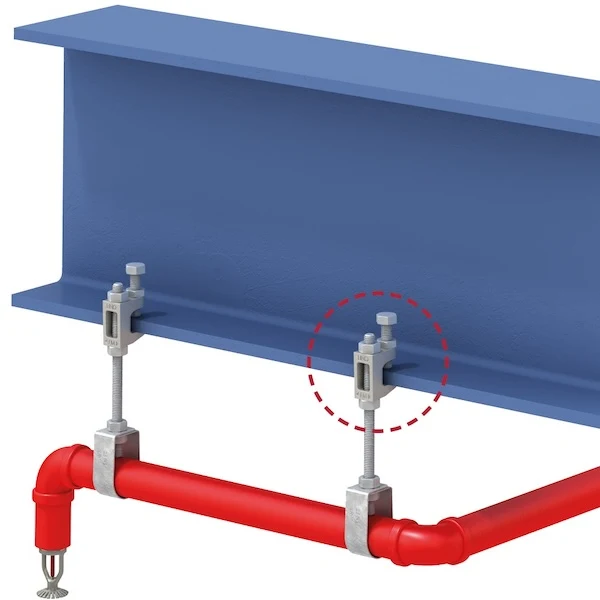

Ideal for hanging pipes, ductwork, or electrical cable trays, these clamps are perfect for connecting threaded rods to steel channels.

Hanging Solution for Steelwork

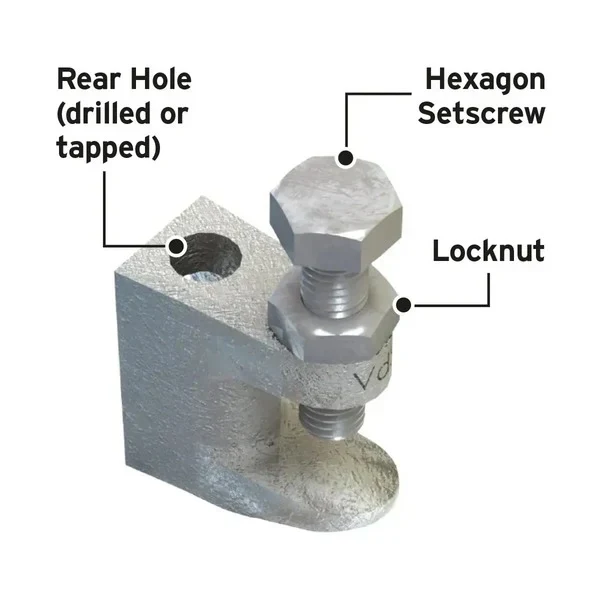

Lindapter clamps feature a cost-effective design for fast, secure, and permanent connections. Suitable for use with bolts or threaded rods, each clamp includes a grade 8.8 cup point setscrew that ensures a secure grip on tapered and parallel flanges.

These flange clamps are fire rated for 120 minutes (ISO 834) and approved by FM and VdS. The body is made from malleable iron (BS EN 1562) with a zinc-plated finish for enhanced durability.

Available from stock with no minimum order requirement.

Dimensions

• Clear Hole Ø Y: 11 mm
• Setscrew Z: M10
• Dimension T: 45 mm
• Dimension U: 40 mm
• Dimension X: 22 mm
• Dimension V: 22 mm
